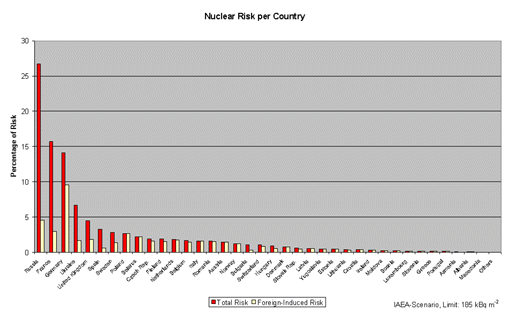

This diagram shows the risk shared by single countries. Red columns represent the risk of all NPPs, while yellow columns represent the share of the risk which is due to NPPs outside the country. In this figure, Russia is on top of France and Germany. However, if the countries are ordered according to the foreign-induced risk, Germany is in the first place.
Nuclear risk per country, IAEA scenario
